LANPORT Company offers products known manufacturer Schneider Electric - PVC cable channel, plastic boxes for cable installation, Electrical installation products and sockets.views: 6632 10-10-2015 | news
Plastic cable channel - the easy-to-understand installation of the cable system. In this system, cable is laid in plastic boxes, consisting of specific channels. Presented a global leader in this market segment, by Schneider Electric Plastic canal system quickly gained popularity among consumers due to its simplicity and functionality.
Ultra installation system - it is two kinds of cable channels, mini TV and cable channels. Each of them is a plastic box that is compatible with the standard 45 mm.
Ultra - is a simple structural solution that enables cable routing without paving the internal channels in the walls and organize the work places in residential and commercial buildings.

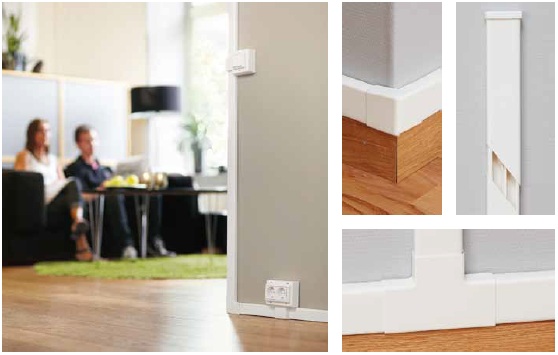

Plastic box Ultra
Plastic box Ultra - a more compact option, however, to fully perform all the functions of the cable channel. Corner units, slides, turns, etc. Are made of ABS material bezgalognenovogo. Boxes PVC cable channels are made of self-extinguishing PVC, which is not harmful to health supplements. The channels have a presentable appearance thanks to a semi-gloss surface, which also makes it easier to clean the ducts channels.
Plastic boxes Ultra done in two sizes: 1-cell plastic box with a lid 101 × 50 mm 2 and a box-section 151 × 50 mm with two lids 40 and 75 mm. The first section of the two-part channel is used for low-voltage cables, the second - for a power cable that meets the requirements of SAE.
For speed of installation boxes on the rear face have oval holes with a spacing of 23 cm. Symmetrical design, in which cable channels are formed, reduces the likelihood of error during installation.

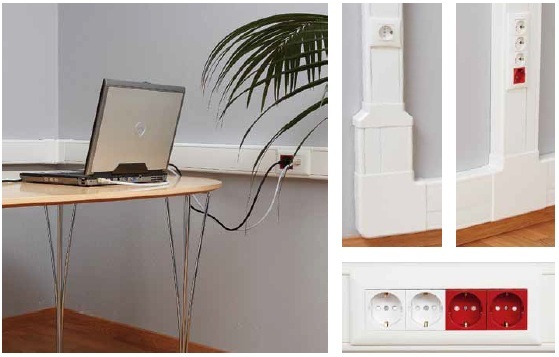

Mini Ultra channels for installation with ELECTRO
Mini Ultra channels for installation with electrical installations are distinguished by mounting boxes for W45 outlet. They greatly simplify cabling in residential premises and offices. This makes it possible to install an outlet or switch anywhere in the room.
Available in four sizes mini-channel Ultra for installation ELECTRO: 1-section plastic box 21 × 12 and 32 × 17 mm, 2-section 40 × 17 mm and 3-mm × 21 sektsionnyy74.

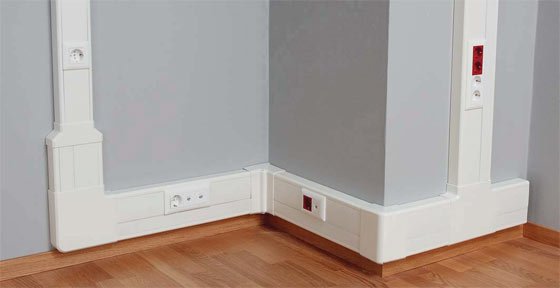

For plastic baseboard system 3-cell box is the best solution. The system also includes one-, two- and trёhpostovye boxes for installation of modular outlets W45.
Boxes mini-channels are also provided with oval holes with a pitch of 23 cm on the back surface for quick installation and are made in a symmetrical design.
Suitable for small installations in offices and homes. Are nine sizes 16 × 16, 25 × 16, 25 × 25, 40 × 16, 40 × 25, 40 × 40, 60 × 25, 60 × 40, 60 × 60 mm. Products small size (16 × 16, 25 × 16 and 25 × 25 mm) can be supplied on request with self-adhesive tape on the rear surface, which significantly speeds up and simplifies installation. For the manufacture of all system accessories is also used environmentally friendly ABS-plastic and mini-cable channels are made of self-extinguishing PVC plastic. Also, "cable-Invest" Package Includes mounting box outlet under W45, making outlet or switch can be quickly installed anywhere in your room.
In addition to exceptional ease of installation and aesthetic appearance of the solution Ultra advantageous in terms of price Here you can buy a plastic box and all parts of the system.
